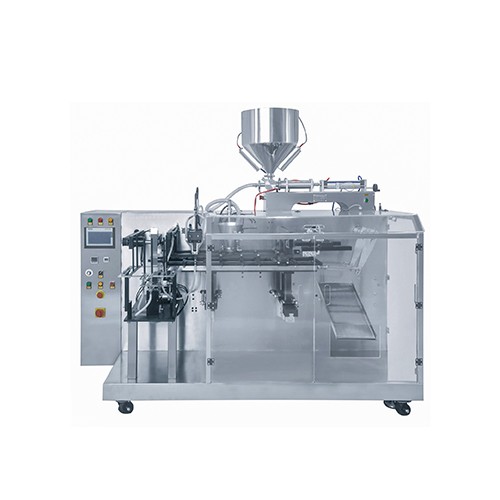

Pre-Made Pouch Bagging Machines

FEATURES

High-Speed Automation

• Achieve up to 60-120 pouches per minute (depending on pouch size and product type), ensuring rapid production cycles for high-volume demands.

• Integrated servo motors and PLC controls guarantee consistent accuracy in filling, sealing, and labeling.

  Versatile Pouch Compatibility

• Accommodates a wide range of pre-made pouch styles: stand-up pouches, spouted pouches, zipper bags, flat pouches, and gusseted bags.

• Adjustable jaws and sealing heads support diverse materials (PET, AL foil, PE, CPP) and pouch sizes (50ml to 5L).

Host frequency control system:Imported AC motor with frequency control, stable and reliable operation, high torque at low speed, even in the case of large changes in load, also excellent operation.

Operating systems:The bag making, sealing and filling are relatively independent systems. The two systems are coordinated by mechanical linkages and programmable controllers (PLC). Thus, it can be adapted to different packaging objects and bag sizes.

Finished product packaging system:Fully automatic production equipment for automatic bag picking, opening, metering, filling and sealing with heat-sealing packaging materials (polyethylene film, multi-layer composite film, etc.).

Integrated control system:It is composed of PLC programmable computer program controller, frequency converter and so on, with high integration, strong control ability and reliable operation. The application of touch screen technology makes the operation of the machine more reliable and convenient.

TECHNICAL PARAMETERS

Packing bag type：Stand-up bags, four-side-seal bags, three-side-seal bags, paper bags, shaped bags and other composite bags

Packing bag size：W:50-100mm,L<200mm

Packing weight：5-200g

Packing speed：55-65pcs/min

Voltage：220V 50HZ

Main power supply：0.75KW×2

Heating pipe power：LΦ12×100L   350W/110V  2pcs

Other power supply：1KW

Compressed air：0.6-0.8Mpa,≥0.7 m3/min

Machine weight：800Kg

Machine Size：1500(L)× 900(W)× 1050(H)mm
